Reduce costs. Do more. Wait less.

Intel SSD D3-S4520 (2.5-inch, M.2) and D3-S4620 (2.5-inch) SATA drives offer these advantages over HDDs.

Lower power and cooling requirements

More IOPS/TB

More bandwidth-efficient in sequential workloads

Lower Annualized Failure Rate (AFR)


Low-Impact Migration to SSDs

The Intel SSD D3-S4520 and D3-S4620 are designed for easy migration from HDDs, while meeting demanding service level requirements and increasing server efficiency.

Reduce Costs

Preserve Legacy Infrastructure

Improve System Reliability

Do More Per Server

Choose Your Form Factor

More capacity with less power/cooling demand Built for compatibility to easily transform storage Replace fewer drives, reduce downtime Performance/power efficiency enables server agility Traditional 2.5-inch or M.2 versions allow flexible migrations



                      Features At-a-Glance



Model

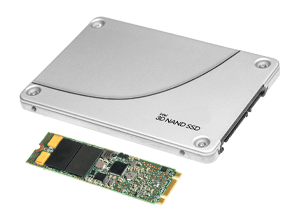

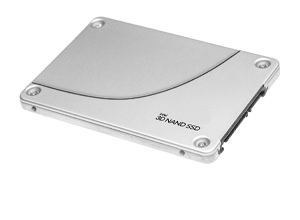

Intel® SSD D3-S4520 Intel® SSD D3-S4620
Capacity and
Form Factor
2.5-inch 7mm: 240 GB, 480 GB, 960 GB,
1.92 TB, 3.84 TB, 7.68 TB
M.2 80mm: 240 GB, 480 GB
2.5-inch 7mm: 480 GB, 960 GB, 1.92 TB,
3.84 TB
Interface SATA III (6 Gb/s) SATA III (6 Gb/s)
Performance 128K Sequential R/W up to 550/510 MB/s 128K
4KB Random R/W up to 92K/48K IOPS
128K Sequential R/W up to 550/510 MB/s
4KB Random R/W up to 91K/60K IOPS
Reliability UBER: 1 sector per 1017 bits read
MTBF: 2 million hours
UBER: 1 sector per 1017 bits read
MTBF: 2 million hour
Warranty 5-year limited warranty 5-year limited warranty
